Handrail End Caps: Product Selection, Materials and Installation

Flat, dome and ball profiles create different visible terminations. Self-grip and knock-in versions depend on a compatible tube bore, while return ends change the handrail direction. Hengke organizes this range into 6 product groups so that buyers can compare the intended connection, mounting method and component geometry before requesting a quotation. The product pages provide a starting point for discussion; the approved drawing and project specification establish the final supply requirements.

Understanding the Product Arrangement

State actual tube dimensions and wall thickness. Check clearance around accessible ends, remove burrs and verify retention after finishing; decorative caps do not replace structural connections. Start with the function of the complete assembly, then identify the components needed at each interface. A photograph can show the general shape, but it does not establish hidden dimensions, fastener engagement, seal compatibility or the suitability of the supporting structure. Provide a marked drawing or installation sketch when the connection cannot be described clearly by a product name.

Materials and Surface Finish

The material selection for this range is 304 or 316 stainless steel to specification. State the required material standard and any documentation or verification needed with the order. The selected grade must suit the actual exposure, contact materials and cleaning regime. Stainless steel still needs appropriate cleaning and drainage; a polished appearance does not remove the need to select a suitable alloy.

Agree the visible finish, texture and permitted variation before production. When parts are installed together, specify whether their grain direction or polished appearance must match. Protect finished surfaces during transport and fitting, and avoid contamination from unsuitable tools or neighboring fabrication work. Where elastomers, glass, coatings or mechanisms are included, define their requirements separately from the metal component.

Product Groups in This Category

Compare the following groups by their intended function and connection details. Similar external outlines can conceal different mounting dimensions or operating arrangements. Follow the individual product links for the corresponding specification and drawing-review information.

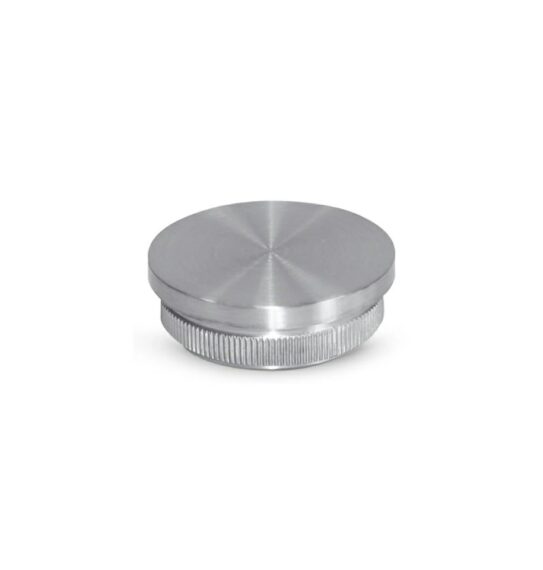

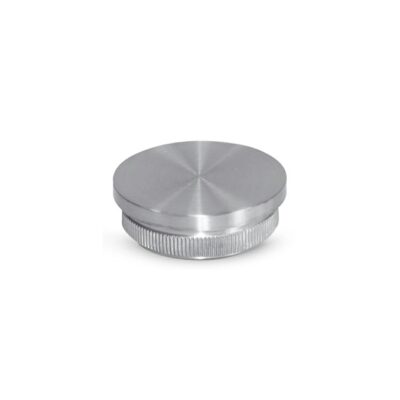

• Flat End Caps: flat closure for a tube end. Match the tube’s actual internal dimensions and cap retention; specify whether the face should sit flush or overlap the tube.
• Dome End Caps: rounded dome closure for a tube end. Confirm tube size and dome projection; check clearance at the rail end and remove exposed burrs before fitting.
• Ball End Caps: spherical decorative termination. Specify ball diameter, stem or socket size and joining method; check projection against the surrounding access space.

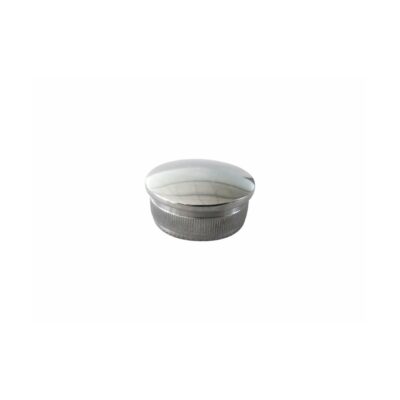

• Self-Grip End Caps: end cap retained by spring or gripping features. Match the cap’s gripping range to the real tube bore; verify retention after finishing and repeated handling.

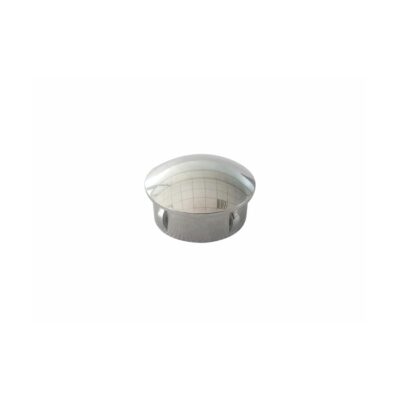

• Knock-In End Caps: press-in end closure for compatible tube bores. State tube wall thickness and insertion fit; use installation methods that avoid denting the tube or damaging the cap finish.

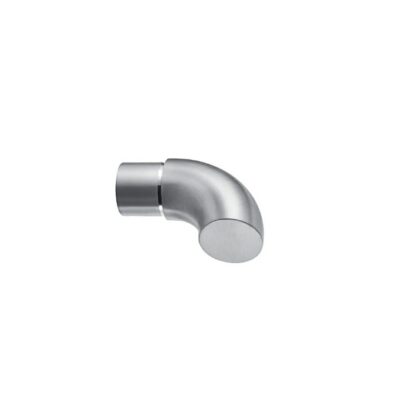

• Handrail Return Ends: curved return directing the handrail end toward a wall or post. Specify return radius, offset and mounting orientation; maintain the required clearance and continuous graspable rail profile.

Dimensions, Fit and Installation Review

The principal selection factors are tube section, cap projection and retention. Identify the dimensions that control assembly and distinguish these from general envelope dimensions. Show the mating parts, installation orientation, available tool space and any movement required in service. State nominal sizes together with the tolerances or fit requirements that make the parts work together.

For railing and glass installations, coordinate surveyed levels, supporting structure, fixing positions and the project barrier requirements. A component should be reviewed as part of the complete assembly; appearance, size or an adjustable joint does not establish system capacity. Trial-fit the first assembly before committing to repeated drilling, cutting or installation.

Manufacturing and Inspection

The manufacturing route may include forming or casting, machining and finishing, with the exact operations selected for the approved part configuration. Review critical interfaces and finishing allowances before manufacture. Required inspection can include dimensional checks, visual surface examination and verification of specified materials or operating features. Any special testing, traceability or load verification must be agreed in the purchase specification.

Use the same drawing revision for quotation, sample review and production acceptance. If a sample is supplied, identify which dimensions or features it defines and which requirements remain on the drawing. Record approved changes so repeat orders retain the same mating interfaces, finish and inspection basis.

Information for a Product Quotation

Send a clear specification with the following details so the correct configuration can be reviewed:

• Product group, drawing revision and required quantity.
• Material grade, surface finish and visible appearance requirements.
• Connection dimensions, mounting pattern, mating parts and installation orientation.
• Service environment, functional requirements and any agreed testing or documentation.
• Delivery schedule, packaging needs and sample approval requirements.

Use the enquiry form beside this article or contact Hengke Casting with your drawings and installation information. We will review the component configuration, manufacturing requirements and inspection needs before preparing a quotation.
