Fishing Rod Holders: Product Selection, Materials and Installation

Straight and angled holders direct a rod differently. The angle needs a clear reference to the mounting surface, and the tube requires space below deck for drainage and any bottom retention feature. Hengke organizes this range into 2 product groups so that buyers can compare the intended connection, mounting method and component geometry before requesting a quotation. The product pages provide a starting point for discussion; the approved drawing and project specification establish the final supply requirements.

Understanding the Product Arrangement

Specify bore, length, liner, flange and installed orientation. Check reel and neighboring-equipment clearance, backing support and fastener access before cutting the deck opening. Start with the function of the complete assembly, then identify the components needed at each interface. A photograph can show the general shape, but it does not establish hidden dimensions, fastener engagement, seal compatibility or the suitability of the supporting structure. Provide a marked drawing or installation sketch when the connection cannot be described clearly by a product name.

Materials and Surface Finish

The material selection for this range is 316 stainless steel with liner where specified. State the required material standard and any documentation or verification needed with the order. The selected grade must suit the actual exposure, contact materials and cleaning regime. Stainless steel still needs appropriate cleaning and drainage; a polished appearance does not remove the need to select a suitable alloy.

Agree the visible finish, texture and permitted variation before production. When parts are installed together, specify whether their grain direction or polished appearance must match. Protect finished surfaces during transport and fitting, and avoid contamination from unsuitable tools or neighboring fabrication work. Where elastomers, glass, coatings or mechanisms are included, define their requirements separately from the metal component.

Product Groups in This Category

Compare the following groups by their intended function and connection details. Similar external outlines can conceal different mounting dimensions or operating arrangements. Follow the individual product links for the corresponding specification and drawing-review information.

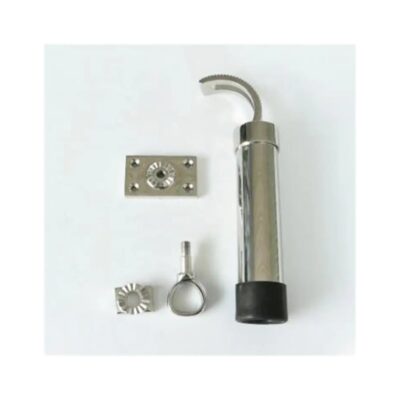

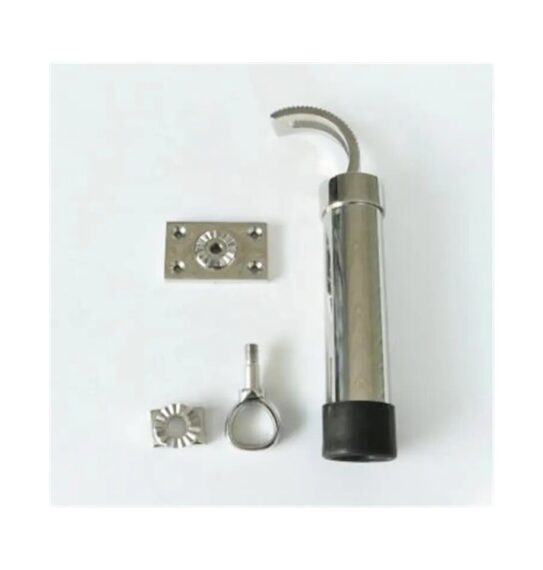

• 90-Degree Fishing Rod Holders: rod support nominally perpendicular to the mounting surface. Specify angle reference, bore, liner and below-deck clearance for the rod butt.

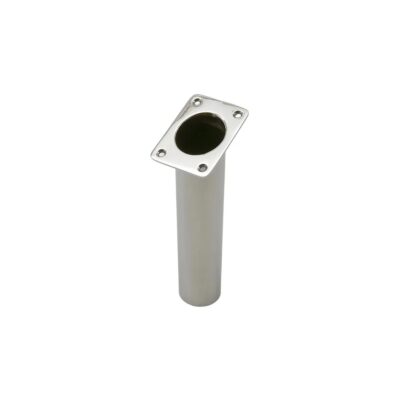

• 20-Degree Fishing Rod Holders: rod support with nominal 20-degree inclination. Define the angle reference and installed orientation; check projection below deck and nearby equipment.

Dimensions, Fit and Installation Review

The principal selection factors are tube angle, rod-butt fit and below-deck clearance. Identify the dimensions that control assembly and distinguish these from general envelope dimensions. Show the mating parts, installation orientation, available tool space and any movement required in service. State nominal sizes together with the tolerances or fit requirements that make the parts work together.

For vessel installations, coordinate deck or hull thickness, backing support, sealing, fastener access and the position relative to nearby equipment. Where a fitting relates to anchoring, mooring, electrical equipment or a moving mechanism, the responsible vessel designer should confirm the complete arrangement and required ratings. Trial-fit the first assembly before committing to repeated drilling, cutting or installation.

Manufacturing and Inspection

The manufacturing route may include tube forming, fabrication and polishing, with the exact operations selected for the approved part configuration. Review critical interfaces and finishing allowances before manufacture. Required inspection can include dimensional checks, visual surface examination and verification of specified materials or operating features. Any special testing, traceability or load verification must be agreed in the purchase specification.

Use the same drawing revision for quotation, sample review and production acceptance. If a sample is supplied, identify which dimensions or features it defines and which requirements remain on the drawing. Record approved changes so repeat orders retain the same mating interfaces, finish and inspection basis.

Information for a Product Quotation

Send a clear specification with the following details so the correct configuration can be reviewed:

• Product group, drawing revision and required quantity.
• Material grade, surface finish and visible appearance requirements.
• Connection dimensions, mounting pattern, mating parts and installation orientation.
• Service environment, functional requirements and any agreed testing or documentation.
• Delivery schedule, packaging needs and sample approval requirements.

Use the enquiry form beside this article or contact Hengke Casting with your drawings and installation information. We will review the component configuration, manufacturing requirements and inspection needs before preparing a quotation.
