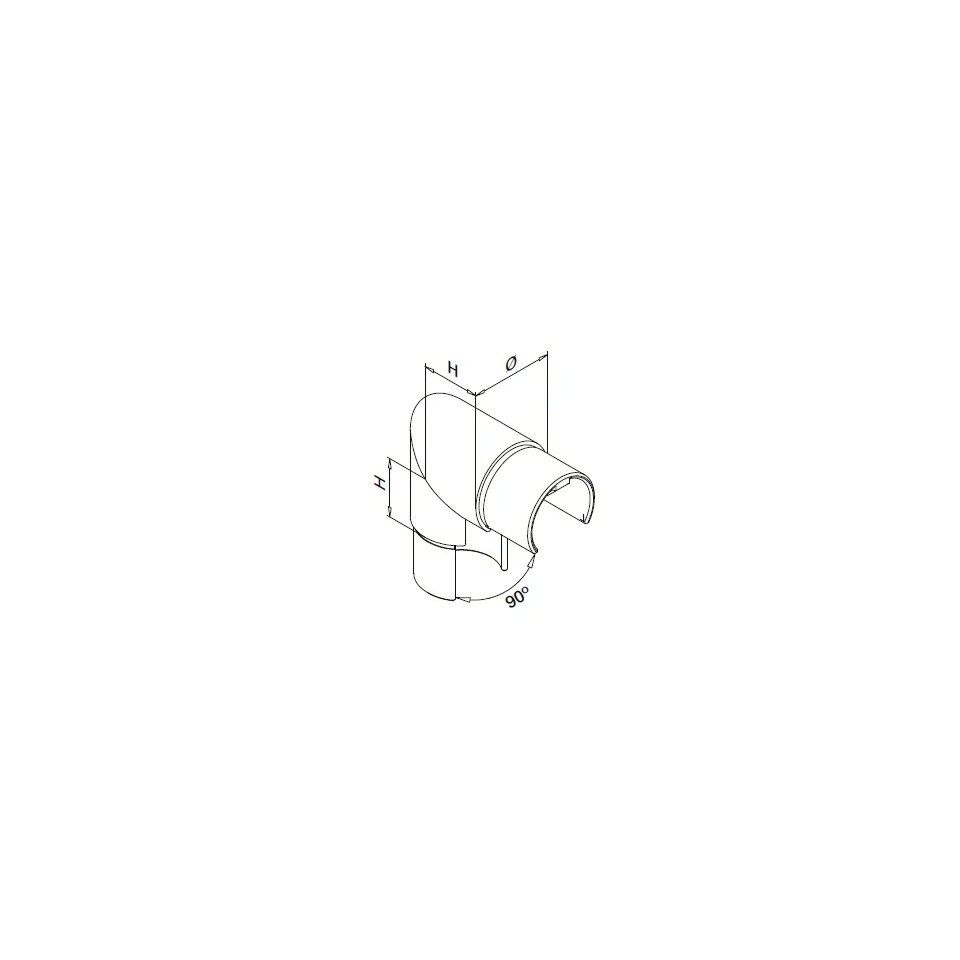

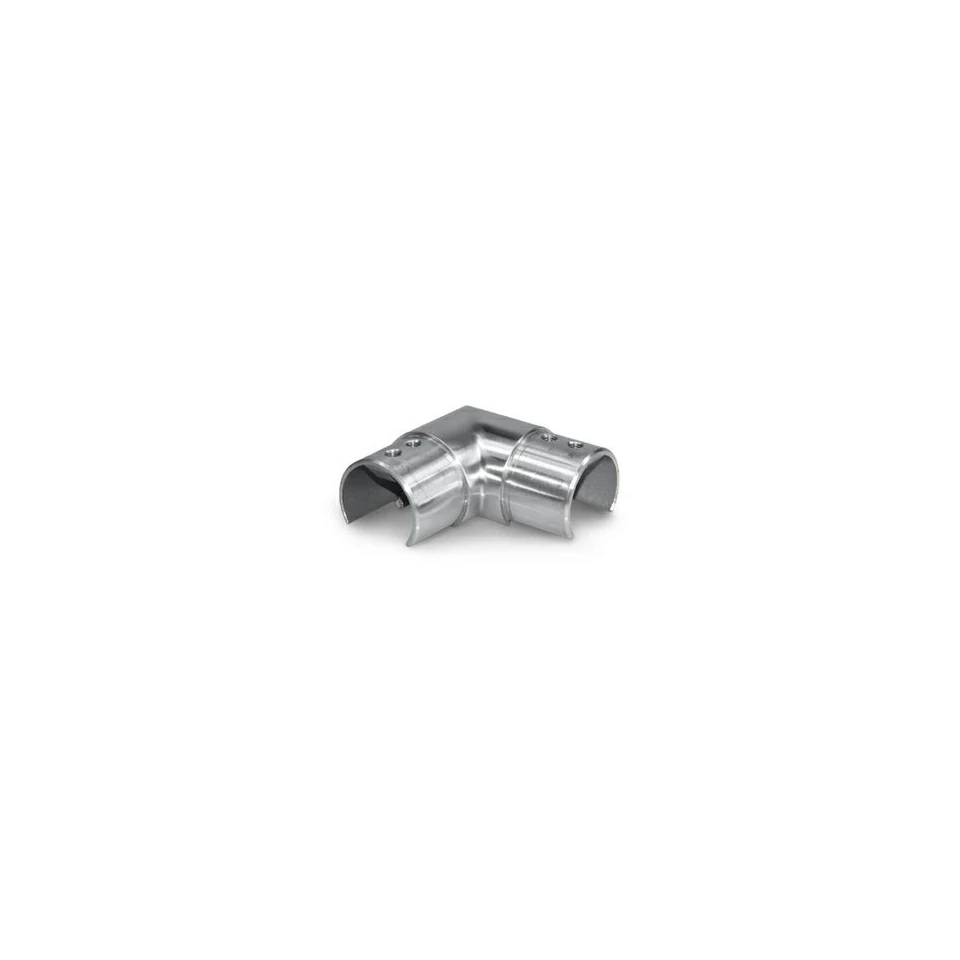

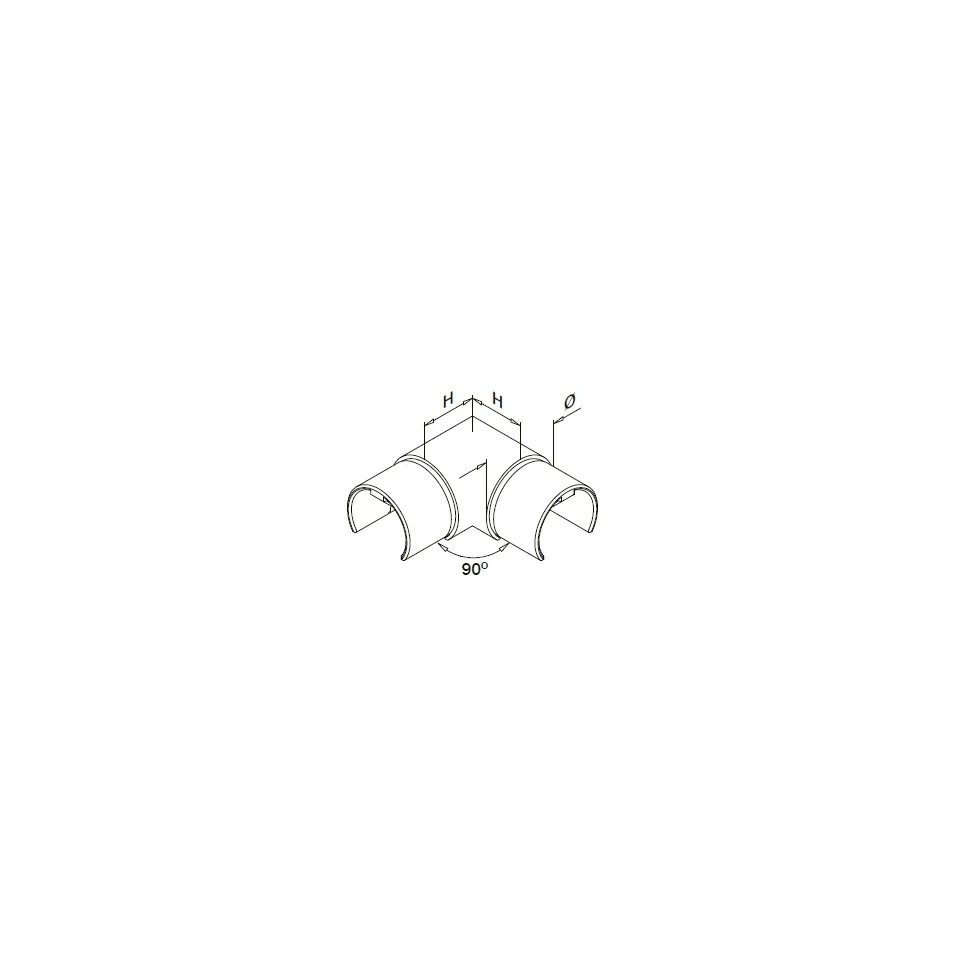

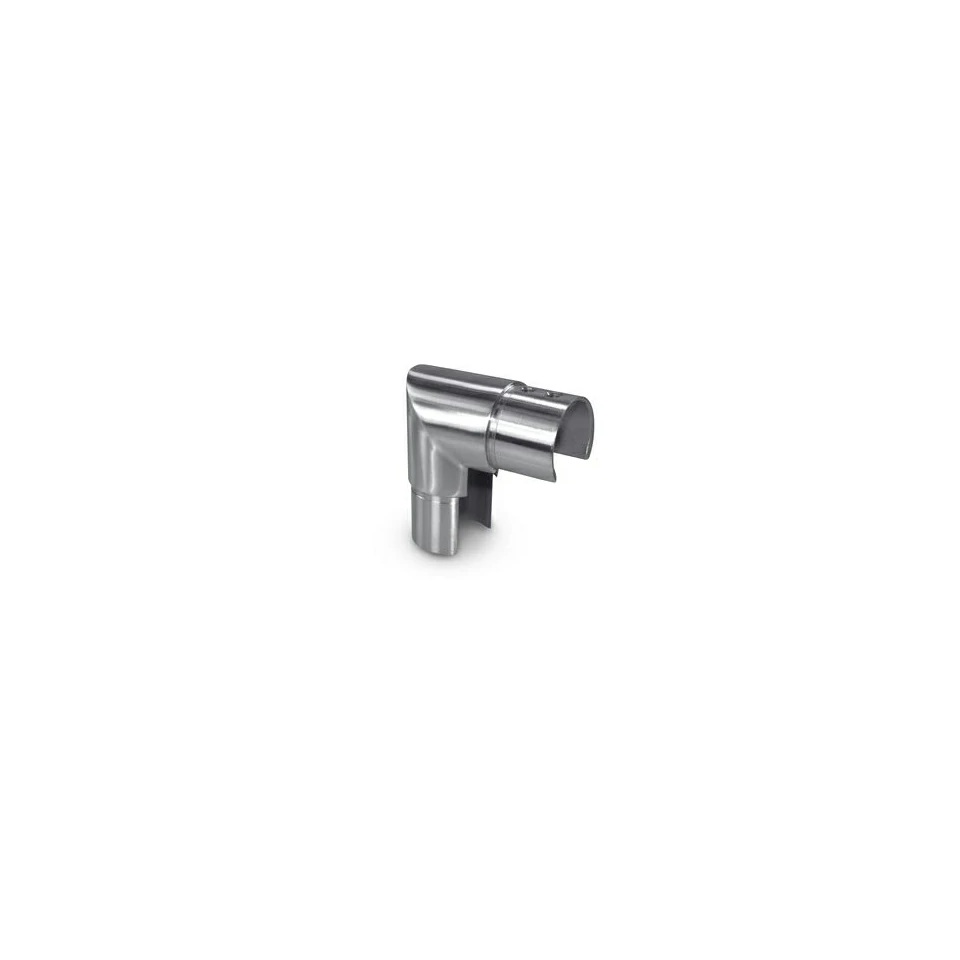

Hengke supplies u-profile 90-degree elbows for glass-edge handrails and slotted tube assemblies. Fixed right-angle joint between U-profile lengths. Material, dimensions, mounting interfaces and surface finish are reviewed against the approved drawings and installation requirements.
Hengke Casting operates under ISO 9001 and IATF 16949 quality systems and supports applicable BV, DNV and PED documentation requirements for customer projects.
Materials | 304 or 316 stainless steel; compatible elastomer for inserts |
Manufacturing | Tube forming, fitting manufacture and finishing |
Application | Glass-edge handrails and slotted tube assemblies |
Surface treatment | Satin or mirror polish to specification |
Process | Tube forming, fitting manufacture and finishing |
Drawing requirements | Surface finish: to agreed specification |
Dimensional tolerance: to approved drawings | |
Envelope dimensions: to approved drawings | |
Quantity and delivery: to quotation | |
Material | 304 or 316 stainless steel; compatible elastomer for inserts |
Alloy selection: subject to the operating conditions | |
Material verification: to agreed inspection plan | |
Application | Glass-edge handrails and slotted tube assemblies |
Design | Provide drawings, material grade, functional interfaces and service conditions. |
Standards | Material, fabrication and testing standards are agreed in the purchase specification. |
Inspection | Dimensional, material and application-specific inspection as specified. |
Hengke supplies u-profile 90-degree elbows for glass-edge handrails and slotted tube assemblies. Fixed right-angle joint between U-profile lengths. Material, dimensions, mounting interfaces and surface finish are reviewed against the approved drawings and installation requirements.
Confirm channel orientation, corner radius and insert continuity; trial-fit the joint to avoid sharp edges against the glass. Confirm the drawing revision, mating components and acceptance requirements before production. Any application-specific testing or load requirement must be agreed separately.
Available verification includes material documentation, dimensional reports and surface examination. Hardness checks, nondestructive testing or component-specific inspection can be agreed against the approved drawing and purchase specification.
Send drawings, material grade, dimensions, tolerances, surface finish, inspection requirements and annual quantity for a manufacturing review.
